Ürünlerimiz / MAKİNA LOKMALARI 1 1/2"

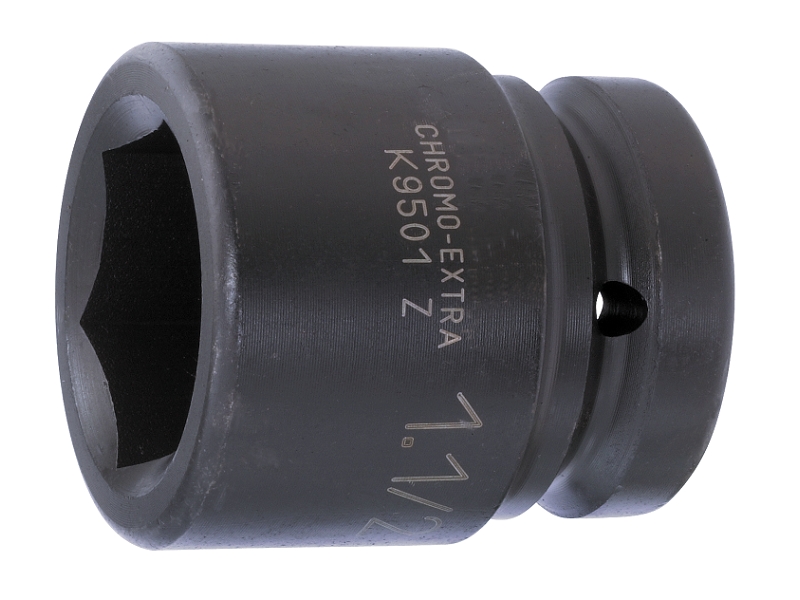

Lokmalar, İnç - K9801Z

Şaft: 1 1/2" DIN 3121-H40, ISO1174
DIN 3129,ISO 2725
Yüzey: dövme, fosfatlanmış
Malzeme: CHROMO-EXTRA
Tork düzeni DIN ve ASMEye göredir.
Dinamik Drive Profilli
Makine kullanımı içindir
Maksimum güvenlik için sıkıştırma yaylarını kullanınız!
Talep üzerine imal edilmiştir.

				L mm	D1 mm	D2 mm
K9801Z-1.3/8	7314150131952	1	1 3/8	69.9	63.8	82.6	K560F-8	2060
K9801Z-1.7/16	7314150131969	1	1 7/16	76.2	65.7	82.6	K560F-8	2030
K9801Z-1.1/2	7314150131976	1	1 1/2	79.4	67.6	82.6	K560F-8	2000
K9801Z-1.9/16	7314150131983	1	1 9/16	79.4	69.3	82.6	K560F-8	1970
K9801Z-1.5/8	7314150131990	1	1 5/8	82.6	71.2	82.6	K560F-8	1960
K9801Z-1.11/16	7314150132003	1	1 11/16	82.6	73.2	82.6	K560F-8	1980
K9801Z-1.3/4	7314150132010	1	1 3/4	85.7	75.1	82.6	K560F-8	2250
K9801Z-1.13/16	7314150132027	1	1 13/16	85.7	76.8	82.6	K560F-8	2200
K9801Z-1.7/8	7314150132034	1	1 7/8	88.9	78.7	82.6	K560F-8	2320
K9801Z-1.15/16	7314150132041	1	1 15/16	88.9	80.6	82.6	K560F-8	2490
K9801Z-2	7314150132058	1	2	88.9	82.6	82.6	K560F-8	2800
K9801Z-2.1/16	7314150132065	1	2 1/16	92.1	84.8	82.6	K560F-8	2740
K9801Z-2.1/8	7314150132072	1	2 1/8	95.3	86.2	82.6	K560F-8	2680
K9801Z-2.3/16	7314150132089	1	2 3/16	95.3	88.1	82.6	K560F-8	2630
K9801Z-2.1/4	7314150132096	1	2 1/4	95.3	90.0	82.6	K560F-8	3240
K9801Z-2.5/16	7314150132102	1	2 5/16	98.4	91.8	82.6	K560F-8	3170
K9801Z-2.3/8	7314150132119	1	2 3/8	98.4	93.7	82.6	K560F-8	3600
K9801Z-2.7/16	7314150132126	1	2 7/16	101.6	95.6	82.6	K560F-8	3520
K9801Z-2.1/2	7314150132133	1	2 1/2	101.6	97.5	82.6	K560F-8	3460
K9801Z-2.9/16	7314150132140	1	2 9/16	104.8	99.3	82.6	K560F-8	3430
K9801Z-2.5/8	7314150132157	1	2 5/8	104.8	101.2	82.6	K560F-8	3880
K9801Z-2.11/16	7314150132164	1	2 11/16	108.0	103.1	82.6	K560F-8	4030
K9801Z-2.3/4	7314150132171	1	2 3/4	111.1	105.0	82.6	K560F-8	4010
K9801Z-2.13/16	7314150132188	1	2 13/16	111.1	106.8	82.6	K560F-8	4420
K9801Z-2.7/8	7314150132195	1	2 7/8	111.1	108.7	82.6	K560F-8	4500
K9801Z-2.15/16	7314150132201	1	2 15/16	114.3	110.6	82.6	K560F-8	4580
K9801Z-3	7314150132218	1	3	114.3	112.5	82.6	K560F-8	4660
K9801Z-3.1/16	7314150132225	1	3 1/16	117.5	114.3	82.6	K560F-8	5310
K9801Z-3.1/8	7314150132232	1	3 1/8	117.5	116.2	82.6	K560F-8	5720
K9801Z-3.1/4	7314150132249	1	3 1/4	120.7	120.0	82.6	K560F-8	5580
K9801Z-3.5/16	7314150132256	1	3 5/16	123.8	121.8	82.6	K560F-8	6220
K9801Z-3.3/8	7314150132263	1	3 3/8	123.8	123.7	82.6	K560F-8	5870
K9801Z-3.7/16	7314150132270	1	3 7/16	123.8	125.6	82.6	K560F-8	6290
K9801Z-3.1/2	7314150132287	1	3 1/2	127	127.5	82.6	K560F-8	6640
K9801Z-3.9/16	7314150132294	1	3 9/16	127	129.3	82.3	K560F-8	6510
K9801Z-3.5/8	7314150132300	1	3 5/8	130.2	131.2	82.6	K560F-8	6380
K9801Z-3.11/16	7314150132317	1	3 11/16	130.2	133.1	82.6	K560F-8	6950
K9801Z-3.3/4	7314150132324	1	3 3/4	133.4	135.0	82.3	K560F-8	7440
K9801Z-3.13/16	7314150132331	1	3 13/16	133.4	136.8	82.6	K560F-8	7260
K9801Z-3.7/8	7314150132348	1	3 7/8	136.5	138.7	82.6	K560F-8	7650
K9801Z-3.15/16	7314150132355	1	3 15/16	136.5	140.6	82.6	K560F-8	7870
K9801Z-4	7314150132362	1	4	136.5	142.5	82.6	K560F-8	8430
K9801Z-4.1/16	7314150132379	1	4 1/16	142.9	144.3	82.6	K560F-8	8700
K9801Z-4.1/8	7314150132386	1	4 1/8	142.9	146.2	82.6	K560F-8	8830
K9801Z-4.1/4	7314150132393	1	4 1/4	146.1	150.0	82.6	K560F-8	9690
K9801Z-4.5/16	7314150132409	1	4 5/16	146.1	151.8	82.6	K560F-8	11000
K9801Z-4.3/8	7314150132416	1	4 3/8	146.1	153.7	82.6	K560F-9	10800
K9801Z-4.7/16	7314150132423	1	4 7/16	149.2	155.6	82.6	K560F-8	10570
K9801Z-4.1/2	7314150132430	1	4 1/2	152.4	157.5	82.6	K560F-8	10830
K9801Z-4.5/8	7314150132447	1	4 5/8	155.6	161.2	82.6	K560F-8	12420
K9801Z-4.3/4	7314150132454	1	4 3/4	155.6	165.0	82.6	K560F-8	12370
