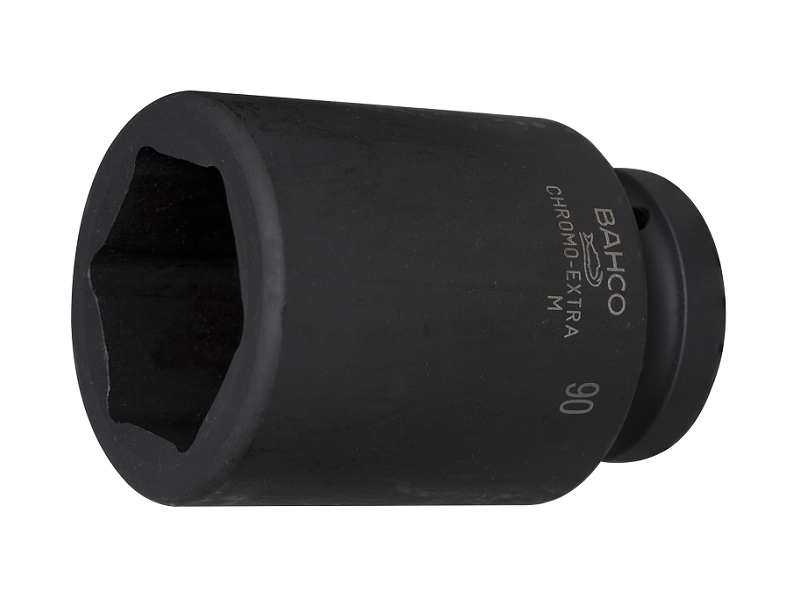

Lokmalar, metrik, derin - K9806Z
|
- Şaft: 1 1/2" DIN 3121-H 40, ISO1174
- DIN 3129,ISO 2725
- Yüzey: dövme, fosfatlanmış
- Malzeme: CHROMO-EXTRA
- Tork düzeni DIN ve ASMEye göredir.
- T = dişi altıgen derinliği
- Dinamik drive profilli
- Makine kullanımı içindir
- Maksimum güvenlik için sıkıştırma yaylarını kullanınız!
- Talep üzerine imal edilmiştir.
 |  |  |  | L mm | D1 mm | D2 mm | T mm |  |  |
|---|---|---|---|---|---|---|---|---|---|
| K9806Z-1.3/8 | 7314150131150 | 1 | 1 3/8 | 104.8 | 63.8 | 82.6 | 23.5 | K560F-8 | 2870 |
| K9806Z-1.7/16 | 7314150131167 | 1 | 1 7/16 | 104.8 | 65.7 | 82.6 | 24.5 | K560F-8 | 2820 |
| K9806Z-1.1/2 | 7314150131174 | 1 | 1 1/2 | 108.0 | 67.6 | 82.6 | 25.5 | K560F-8 | 2770 |
| K9806Z-1.5/8 | 7314150131181 | 1 | 1 5/8 | 111.1 | 71.2 | 82.6 | 27.6 | K560F-8 | 2820 |
| K9806Z-1.11/16 | 7314150131198 | 1 | 1 11/16 | 114.3 | 73.2 | 82.6 | 28.6 | K560F-8 | 2900 |
| K9806Z-2 | 7314150131204 | 1 | 2 | 123.8 | 82.6 | 82.6 | 33.7 | K560F-8 | 3540 |
| K9806Z-2.1/16 | 7314150131211 | 1 | 2 1/16 | 123.8 | 84.8 | 82.6 | 34.7 | K560F-8 | 3530 |
| K9806Z-2.3/16 | 7314150131228 | 1 | 2 3/16 | 130.2 | 88.1 | 82.6 | 36.7 | K560F-8 | 3780 |
| K9806Z-2.1/4 | 7314150131235 | 1 | 2 1/4 | 130.2 | 90.0 | 82.6 | 37.7 | K560F-8 | 4030 |
| K9806Z-2.5/16 | 7314150131242 | 1 | 2 5/16 | 133.4 | 91.8 | 82.6 | 38.7 | K560F-8 | 4120 |
| K9806Z-2.3/8 | 7314150131259 | 1 | 2 3/8 | 133.4 | 93.7 | 82.6 | 39.8 | K560F-8 | 4300 |
| K9806Z-2.7/16 | 7314150131266 | 1 | 2 7/16 | 136.5 | 95.6 | 82.6 | 40.8 | K560F-8 | 4380 |
| K9806Z-2.1/2 | 7314150131273 | 1 | 2 1/2 | 139.7 | 97.5 | 82.6 | 41.8 | K560F-8 | 4590 |
| K9806Z-2.9/16 | 7314150131280 | 1 | 2 9/16 | 139.7 | 99.3 | 82.6 | 42.8 | K560F-8 | 4770 |
| K9806Z-2.5/8 | 7314150131297 | 1 | 2 5/8 | 142.9 | 101.2 | 82.6 | 43.8 | K560F-8 | 4970 |
| K9806Z-2.11/16 | 7314150131303 | 1 | 2 11/16 | 142.9 | 103.1 | 82.6 | 44.8 | K560F-8 | 5170 |
| K9806Z-2.3/4 | 7314150131310 | 1 | 2 3/4 | 146.1 | 105.0 | 82.6 | 45.8 | K560F-8 | 5250 |
| K9806Z-2.13/16 | 7314150131327 | 1 | 2 13/16 | 149.2 | 106.8 | 82.6 | 46.9 | K560F-8 | 5730 |
| K9806Z-2.7/8 | 7314150131334 | 1 | 2 7/8 | 149.2 | 108.7 | 82.6 | 47.9 | K560F-8 | 5820 |
| K9806Z-2.15/16 | 7314150131341 | 1 | 2 15/16 | 152.4 | 110.6 | 82.6 | 48.9 | K560F-8 | 5920 |
| K9806Z-3 | 7314150131358 | 1 | 3 | 152.4 | 112.5 | 82.6 | 49.9 | K560F-8 | 6300 |
| K9806Z-3.1/16 | 7314150131365 | 1 | 3 1/16 | 155.6 | 114.3 | 82.6 | 50.9 | K560F-8 | 6680 |
| K9806Z-3.1/8 | 7314150131372 | 1 | 3 1/8 | 158.8 | 116.2 | 82.6 | 51.9 | K560F-8 | 6780 |
| K9806Z-3.3/16 | 7314150131389 | 1 | 3 3/16 | 158.8 | 118.1 | 82.6 | 53.0 | K560F-8 | 7190 |
| K9806Z-3.1/4 | 7314150131396 | 1 | 3 1/4 | 161.9 | 120.0 | 82.6 | 54.0 | K560F-8 | 7460 |
| K9806Z-3.5/16 | 7314150131402 | 1 | 3 5/16 | 161.9 | 121.8 | 82.6 | 55.0 | K560F-8 | 7580 |
| K9806Z-3.3/8 | 7314150131419 | 1 | 3 3/8 | 165.1 | 123.7 | 82.6 | 56.0 | K560F-8 | 7860 |
| K9806Z-3.7/16 | 7314150131426 | 1 | 3 7/16 | 168.3 | 125.6 | 82.6 | 57.0 | K560F-8 | 8310 |
| K9806Z-3.1/2 | 7314150131433 | 1 | 3 1/2 | 168.3 | 127.5 | 82.6 | 58.0 | K560F-8 | 8450 |
| K9806Z-3.9/16 | 7314150131440 | 1 | 3 9/16 | 171.5 | 129.3 | 82.6 | 59.1 | K560F-8 | 8740 |
| K9806Z-3.5/8 | 7314150131457 | 1 | 3 5/8 | 171.5 | 131.2 | 82.6 | 60.1 | K560F-8 | 9420 |
| K9806Z-3.11/16 | 7314150131464 | 1 | 3 11/16 | 174.6 | 133.1 | 82.6 | 61.1 | K560F-8 | 9560 |
| K9806Z-3.3/4 | 7314150131471 | 1 | 3 3/4 | 177.8 | 135.0 | 82.6 | 62.1 | K560F-8 | 9710 |
| K9806Z-3.13/16 | 7314150131488 | 1 | 3 13/16 | 177.8 | 136.8 | 82.6 | 63.1 | K560F-8 | 10210 |
| K9806Z-3.7/8 | 7314150131495 | 1 | 3 7/8 | 181.0 | 138.7 | 82.6 | 64.1 | K560F-8 | 10560 |
| K9806Z-3.15/16 | 7314150131501 | 1 | 3 15/16 | 181.0 | 140.6 | 82.6 | 65.2 | K560F-8 | 11130 |
| K9806Z-4 | 7314150131518 | 1 | 4 | 184.2 | 142.5 | 82.6 | 66.2 | K560F-8 | 11290 |
| K9806Z-4.1/16 | 7314150131525 | 1 | 4 1/16 | 187.3 | 144.3 | 82.6 | 67.2 | K560F-8 | 12080 |
| K9806Z-4.1/8 | 7314150131532 | 1 | 4 1/8 | 187.3 | 146.2 | 82.6 | 68.2 | K560F-8 | 12240 |
| K9806Z-4.1/4 | 7314150131549 | 1 | 4 1/4 | 190.5 | 150.0 | 82.6 | 70.2 | K560F-8 | 13260 |
| K9806Z-4.5/16 | 7314150131556 | 1 | 4 5/16 | 193.7 | 151.8 | 82.6 | 71.2 | K560F-8 | 15120 |
| K9806Z-4.3/8 | 7314150131563 | 1 | 4 3/8 | 196.9 | 153.7 | 82.6 | 72.3 | K560F-8 | 14830 |
| K9806Z-4.1/2 | 7314150131570 | 1 | 4 1/2 | 200.0 | 157.5 | 82.6 | 74.3 | K560F-8 | 14680 |
| K9806Z-4.5/8 | 7314150131587 | 1 | 4 5/8 | 203.2 | 161.2 | 82.6 | 76.3 | K560F-8 | 15360 |
| K9806Z-4.3/4 | 7314150131594 | 1 | 4 3/4 | 206.4 | 165.0 | 82.6 | 78.4 | K560F-8 | 15500 |
